Inside a Clean Control Panel Build for Fan Motor Control

Most people never think about what's inside a control panel - until something stops working. That's when a messy, poorly built panel becomes a real problem. Tracing wires, diagnosing faults, and making safe repairs gets a lot harder when the original work was done without care.

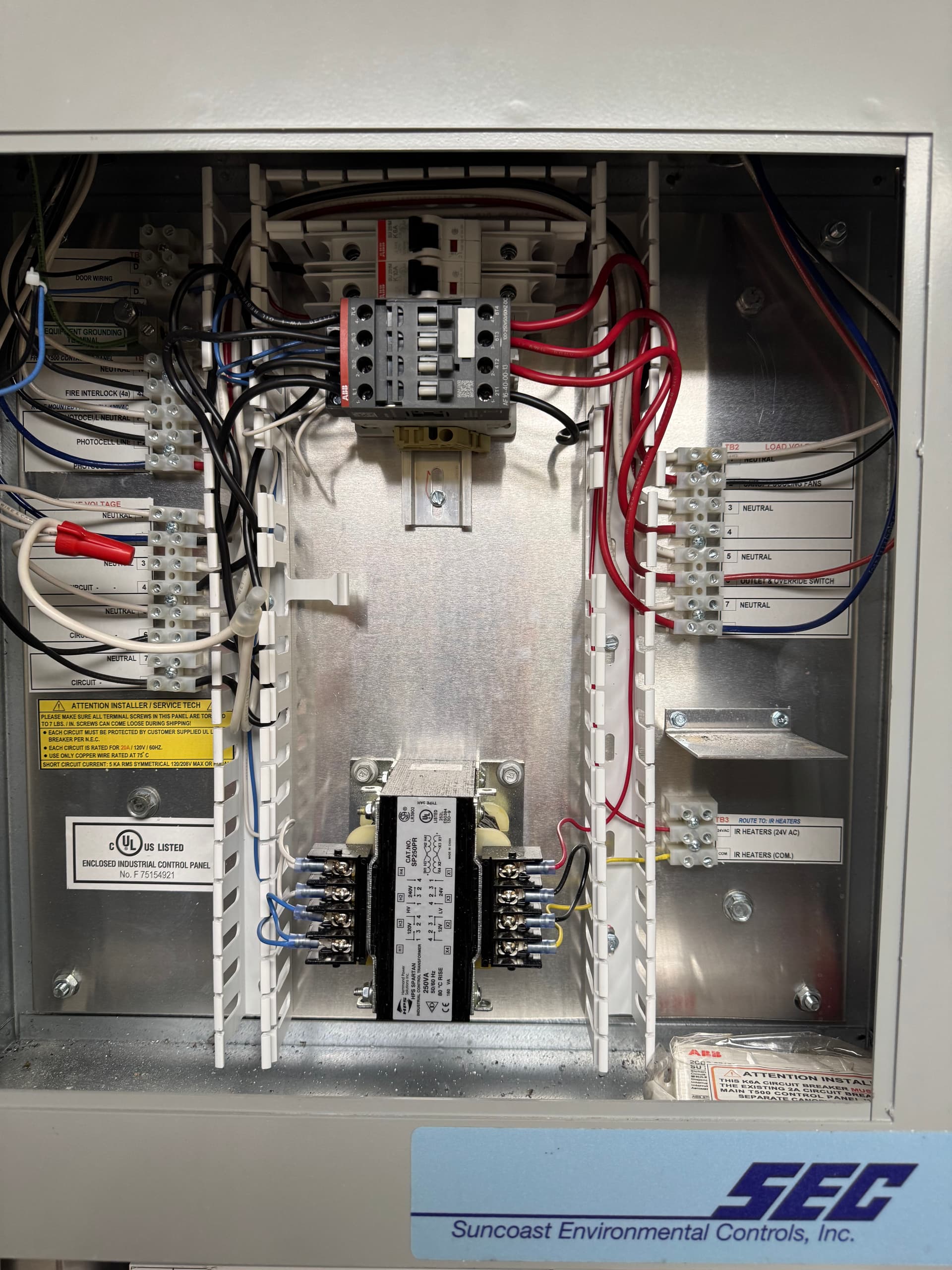

This is a UL-listed enclosed industrial control panel wired for fan motor control. Every wire has a place. The terminal blocks are labeled, the wire management channels keep everything routed cleanly, and the ABB contactor up top handles the motor switching exactly the way it should. There's also a control transformer mounted at the center - that's what steps down voltage for the low-voltage control circuits, including the IR heater outputs you can see labeled on the right side terminal blocks.

Good panel work like this doesn't just look better. It runs more reliably, it's safer to service, and it saves serious time whenever someone needs to troubleshoot or make changes down the road. A well-documented, well-organized panel is a gift to whoever has to work on it next.

We handle this kind of work regularly - fan motor control, lighting circuits, wiring diagnostics, and electrical repairs. Whether it's a new panel build or sorting out an existing system that's giving you trouble, clean and reliable electrical work is what we're built around.

If your system is running on aging wiring or a panel that's hard to follow, that's worth paying attention to before it becomes an emergency.
